Lead-in movement

leadinbewegung

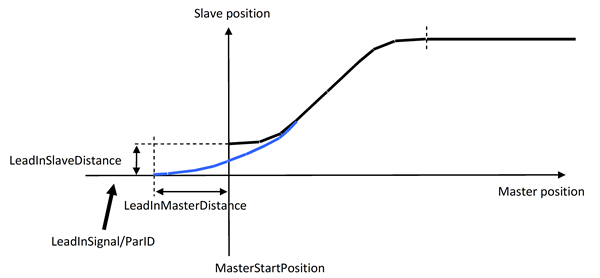

After the lead-in signal has been received, the slave axis begins with the lead-in movement when the master axis reaches the position "MasterStartPosition" – "LeadInMasterDistance". The specification for "LeadInMasterDistance" and "LeadInSlaveDistance" refers to the starting point for the automatically calculated cam.
