This function block cyclically reads the value of a transmit channel on the PLC. In addition to the axis sending the data (master axis), either the transmit channel or the ParID must be specified.
Requirements for use
This function block can only be used on SG4 target system.
This function block cannot be used with axes on a CAN bus.
This function block should be called in the task class that is defined as the "Task class for NC Manager tasks" in the APC10 configuration. Calling it in a different task class can lead to data inconsistencies on the "CyclicValue" output.
PLCopen axis states in which the function block is permitted to be enabled
All PLCopen axis states, no effect on the PLCopen axis state

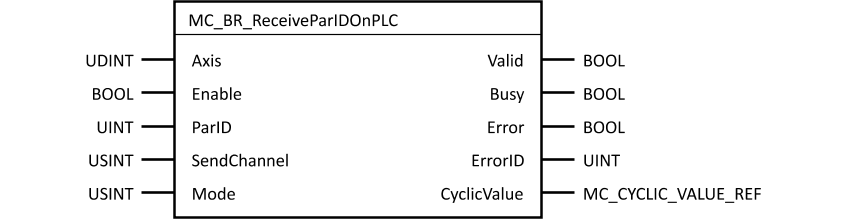

Function block
Parameter
I/O |
Parameter |
Data type |
Description |
IN |
UDINT |
Axis reference (transmitter) |
|
IN |
BOOL |
Enables cyclic reading of the ParID |
|
IN |
ParID |
UINT |
ParID whose "Axis" value is already being transmitted and that should be cyclically read on the PLC Note: This definition is not necessary if a value ≠ "0" is specified for "SendChannel". |
IN |
SendChannel |
USINT |
0 ... Function block uses the ParID to search for the transmit channel 1 ... 3 ... ACP10PAR_MA1/2/3_CYCLIC_SEND |
IN |
Mode |
USINT |
Mode for converting to the PLCopen position (period and factor): mcNO_POSITION ... 0 mcPOSITION ... 1 |
OUT |
Valid |
BOOL |
Initialization completed, reading and outputting ParID |
OUT |
Busy |
BOOL |
The function block is active and must continue to be called. |
OUT |
Error |
BOOL |
Error during execution |
OUT |
ErrorID |
UINT |
|
OUT |
CyclicValue |
MC_CYCLIC_VALUE_REF |
Cyclically read value or high-resolution position |
Table: Parameter MC_BR_ReceiveParIDOnPLC
MC_CYCLIC_VALUE_REF data type
Parameter |
Data type |
Description |
Integer |
DINT |
Whole number part |
Real |
REAL |
Floating point value (or decimal part) |
